Dynamic Slide Ring Double Acting

The double acting seal series AF-512 can be used in most hydraulic applications.
Different material and combinations assure operational security and long life over the entire pressure and velocity range with low friction, at various temperatures and pressure fluids.
Special Features:

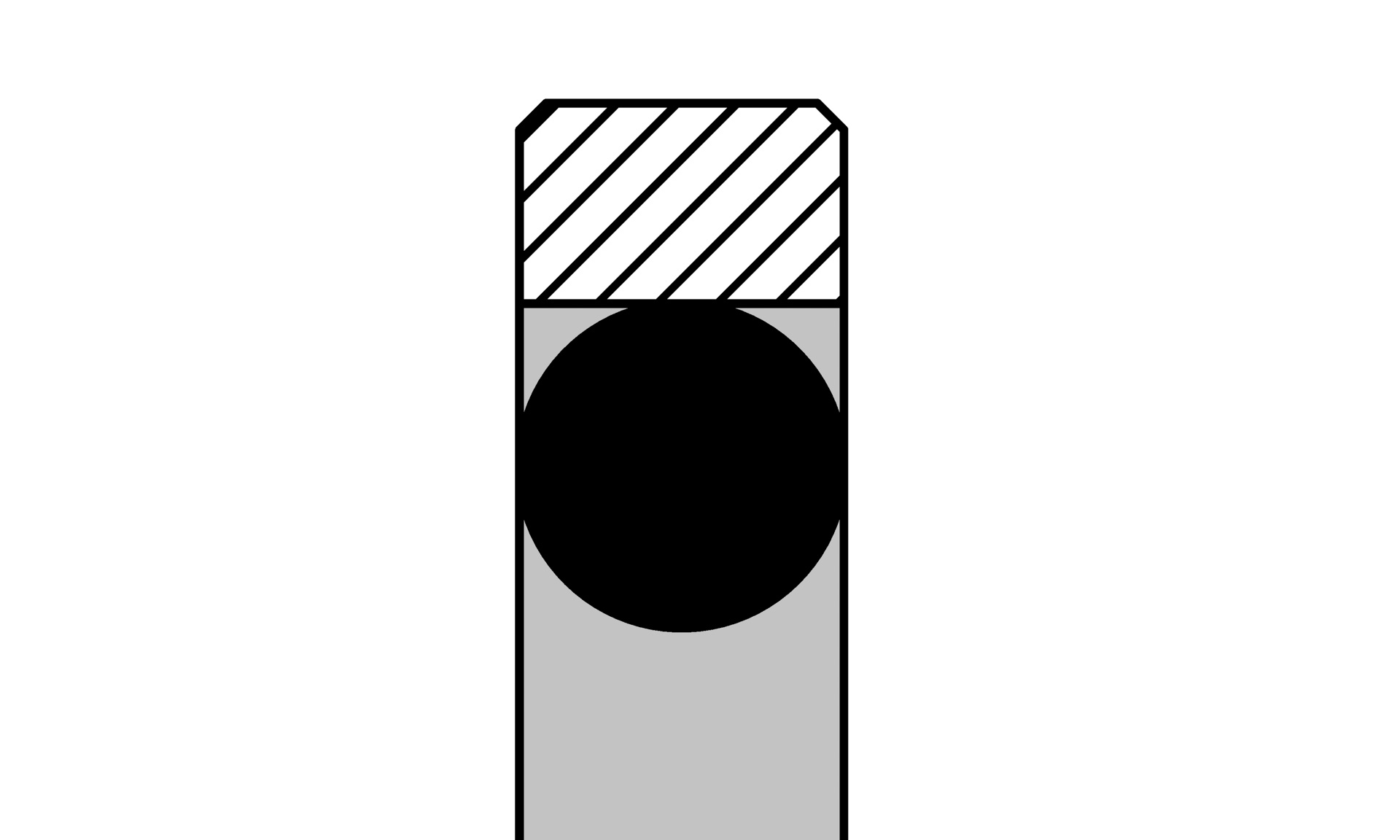

Two part composition, consisting of a dynamic slide ring and a static seal as is an O-ring
Outstanding shear characteristics, no stick slip effect
Good dynamic and static sealing
Good abrasion resistance, long life
Wide temperature range of use and better chemical resistance depending on O-ring material
Designed for assembly on single part piston
Available for all cylinder diameters up to 2500 mm

512 is without notches
