Dynamic Wiper (Single Acting)

The wiper AF-580 is used in hydraulic cylinders to wipe the incoming piston rod clean of dirt.
Various material combinations ensure high functional security and service life over the entire velocity range and very low friction. Functions well at a variety of temperatures and with many different pressure fluids.

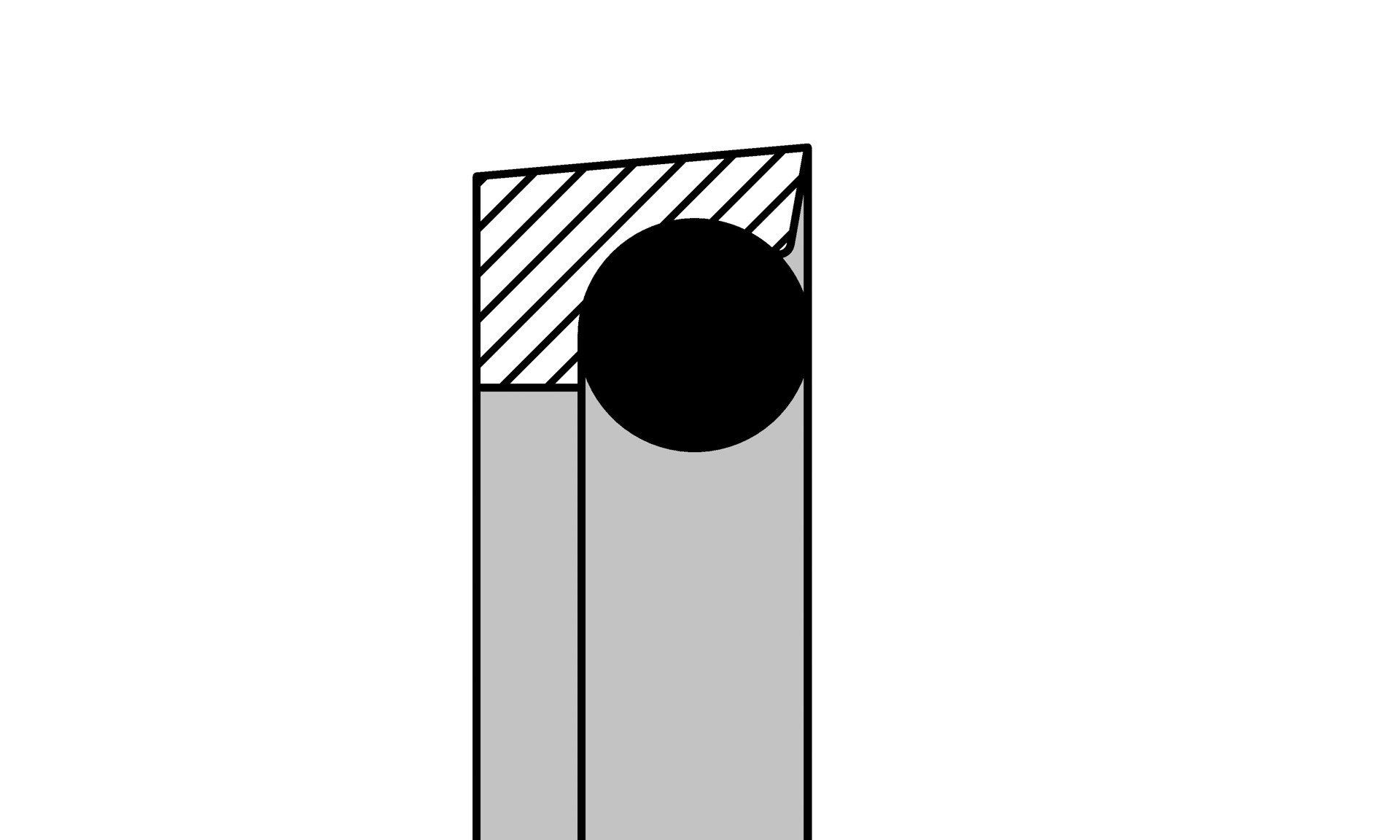

Two part composition comprising of wiper/scraper ring and O-ring

Advantages:

• Very good wiper. AF-480 has an extraordinary ability to wipe away sticky media and dirt
• AF-480 is a single-acting wiper, and is capable of preventing unwanted pressure build-up
• Outstanding shear strength characteristics with no stick-slip effect
• High abrasion resistance and a long service life
• Wide temperature range and high chemical resistance

Limitations:
